The strength of your walls depends significantly on drywall thickness. Most homes use 1/2-inch panels for standard walls. A 5/8-inch panel weighs 57 pounds per 4×8-foot sheet and provides enhanced soundproofing with superior strength. The right thickness choice depends on the wall’s location and purpose.
Wall requirements determine the standard thickness needed. The thinnest option, 1/4-inch panels, work best for curved surfaces. Ceilings need 5/8-inch panels to prevent sagging effectively. Building codes specify required thicknesses, especially with studs placed 24 inches apart. Each thickness serves a unique purpose, and understanding these applications helps create stronger, longer-lasting walls.
Drywall Thickness and Its Role in Wall Strength
Drywall panel thickness serves as the foundation of wall performance in building projects. The right thickness choice determines wall longevity and resistance to daily wear. Your choice of thickness will decide if walls stay strong or develop problems as time passes. Standard drywall comes in several thicknesses: 1/4-inch, 3/8-inch, 1/2-inch, 5/8-inch, and 3/4-inch panels.
Why drywall thickness affects wall durability
Wall strength comes straight from the thickness and density of drywall material. Thicker panels pack more gypsum material, which helps them resist damage from impacts and regular use. Extra mass in thicker sheets provides better structural support and prevents dents and punctures. A 5/8-inch drywall sheet stands up better to impacts than a 1/2-inch panel.
Material mass plays a key role in how drywall handles stress, so wall performance gets better with panel thickness. Thinner sheets bend more under pressure and break more easily. Lab tests clearly show this strength difference. A classroom test revealed that walls with full gypsum coverage withstood four impact strikes, while walls without sheathing failed after just one hit.
Wrong thickness choices for specific uses lead to more durability problems. Walls can crack, warp, or break down over time without adequate thickness. Thicker drywall adds rigidity that helps prevent these issues. Proper thickness keeps walls looking good and working well for decades.
How drywall thickness relates to wall load and stress
Drywall sheathing makes walls much stronger vertically than bare stud walls. This happens because drywall braces against buckling forces. Standard 1/2-inch drywall properly screwed to framing can handle 215 pounds per linear foot in tests, though building codes rate it at 60 pounds per linear foot. This strength boost shows how thickness works with proper installation to support structure.
Ceiling applications really show how thickness changes performance under stress. While 1/2-inch drywall supports 1.6 pounds per square foot, 5/8-inch panels fight sagging between joists much better. Spans wider than 16 inches need 5/8-inch thickness because thinner panels will sag eventually. Extra mass creates better stability against gravity.
Panel strength depends on installation direction, no matter the thickness. Drywall mounted perpendicular to framing becomes three times stronger than parallel installation. This direction spreads loads better across the surface. Using the right thickness and installation direction together maximizes wall performance under stress.
Taller walls need thicker panels because gravity pulls harder on them. Walls over 8 feet tall need 5/8-inch drywall to prevent sagging or bowing that might happen with thinner options. Extra weight from thicker panels pays off through better structural performance. This relationship between thickness and height explains why commercial buildings usually stick to 5/8-inch as their standard.
Common Drywall Thicknesses and Their Use Cases
Your choice of drywall thickness plays a key role in how well it works in different parts of your home. You’ll find four main thickness options available. Each one works best in specific places and serves different functions. The thickness you pick will determine the weight, strength, and performance after installation. Most homeowners use either 1/2-inch or 5/8-inch panels. The thinner and thicker options are great for special uses.
¼-inch drywall for curved surfaces and overlays
Quarter-inch drywall shines when you need to create curved walls and archways. Thicker panels would crack in these spots. This thinnest option bends easily, which makes it perfect for arches and rounded corners in homes. You can even dampen 1/4-inch panels to bend them around tighter curves. These light sheets work well as overlay material when you want to refresh existing walls without adding bulk. They’re also great for making curved surfaces without special cutting. Just remember – don’t use quarter-inch panels alone for standard walls. They’re not strong enough to stand alone.
⅜-inch drywall for patching and remodeling
Three-eighths-inch drywall offers more strength than 1/4-inch panels but stays flexible enough to work with. While this used to be the go-to thickness for interior walls, now it’s mainly used for repairs and patches. It’s a popular choice for remodeling projects where you need to match existing thinner walls. This size also works well for curved spots that need more strength than 1/4-inch provides. The lighter weight makes it easier to handle during installation, especially on ceilings.
½-inch drywall for standard interior walls
Half-inch drywall is the most common choice in homes today. It hits the sweet spot between strength and weight, making it perfect for most interior walls. A regular 1/2-inch panel weighs about 60 pounds, but newer lightweight versions come in at 41 pounds and still meet building codes. These panels work great with studs placed 16 inches apart – the usual setup in homes. You can handle most home projects with this thickness, and one or two people can manage the installation.
⅝-inch drywall for ceilings and fire-rated areas
Five-eighths-inch drywall keeps ceilings from sagging, especially with added insulation or texturing. It handles spans over 16 inches between joists better than thinner options. You’ll often see this thickness in fire-rated applications because it has special core materials that resist fire. The extra thickness helps with soundproofing between rooms too, which makes it a favorite for bedrooms and living spaces. While these panels cost more, they’re worth it when you need better fire safety or sound control.
¾-inch and 1-inch drywall for special applications
Three-quarter-inch drywall meets specific needs, mainly in commercial buildings. You’ll find this thickness in steel-framed walls that need extra fire protection. Each 4×10-foot sheet weighs about 112 pounds, which is a big deal as it means that it’s rarely used in homes. The walls need strong support systems to handle this weight. One-inch panels are even more specialized, showing up only in commercial projects where fire protection matters more than weight.

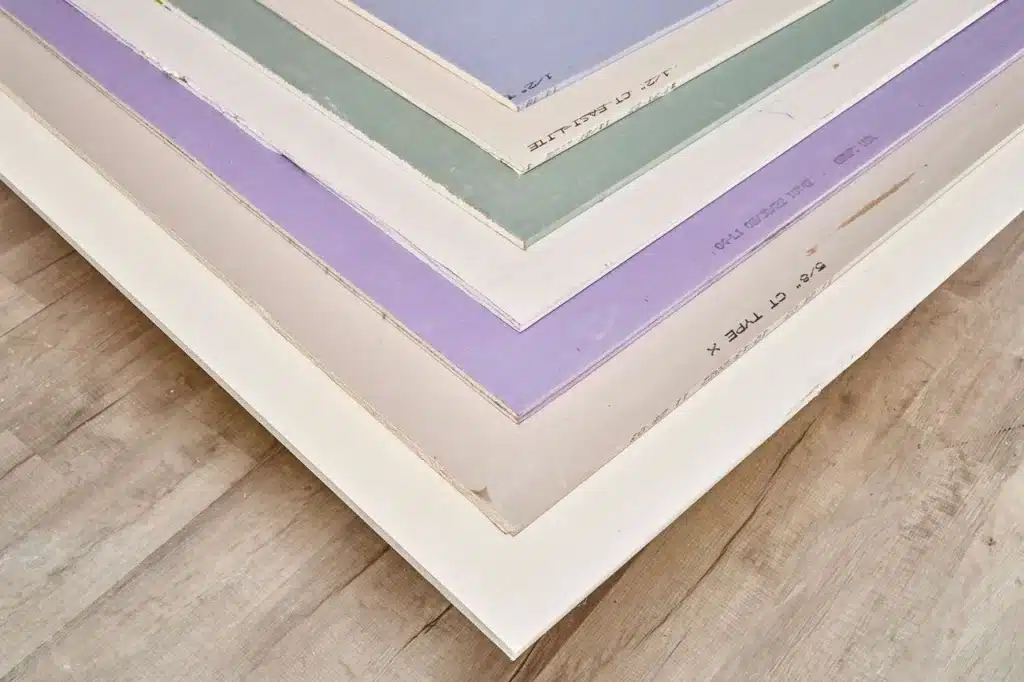

Specialty Drywall Types by Thickness
Image Source: The Spruce
Specialty drywall development focuses on fire safety, sound control, moisture protection, and weight reduction. Different construction challenges need specific thickness and modified composition combinations. Standard drywall thickness ranges from 1/4-inch to 1-inch, with each application needing its own formula. These specialized panels cost more but deliver targeted benefits that standard drywall can’t match.
Type X and Type C fire-rated drywall
Type X drywall has glass fibers mixed with gypsum to boost fire resistance. This 5/8-inch thick material gives one-hour fire resistance with proper wall framing. Type X panels work great between residential living spaces and attached garages where codes require fire-resistant construction. Type C drywall has more glass fibers than Type X and vermiculite that stops shrinking during fires. Under similar conditions, Type C stays stable longer when exposed to flame and extends protection time to 2-4 hours compared to Type X’s 57 minutes. Both types meet ASTM C1396 standards for fire-resistant gypsum board. Type C works best for ceilings while Type X is ideal for walls.
Soundproof drywall with layered gypsum
Soundproof drywall combines multiple gypsum layers with special noise-dampening adhesive. These panels are 1/2-inch to 5/8-inch thick and use viscoelastic polymers between layers to absorb sound vibrations. SoundBreak XP and QuietRock 530 use two rigid gypsum sheets with sound-deadening barriers to cut noise transmission. A single layer of 1/2-inch soundproof drywall reaches an STC rating of 52, while regular drywall sits at STC 34. QuietRock 510 costs about $52 per 4×8-foot sheet, compared to $20 for standard panels.
Moisture-resistant drywall for wet areas
Bathrooms, kitchens, and laundry rooms with high humidity levels need moisture-resistant drywall. Green board features a water-resistant gypsum core and water-repellent paper covering to stop water damage. Purple XP drywall uses SPORGARD technology that fights mold and absorbs less than 5% water. Most moisture-resistant panels come in 1/2-inch thickness for walls and 5/8-inch for ceilings that need both moisture and fire resistance. Shower enclosures with direct water exposure should still use cement board instead of these panels.
Ultra lightweight drywall for easier handling
Ultra lightweight drywall weighs 25% less than standard panels but stays just as strong. A 4×8-foot sheet of 1/2-inch ultra lightweight drywall weighs 39 pounds, while standard drywall hits 51 pounds. This 12-pound difference makes it easier for professionals and homeowners to move and install. Manufacturers add foam agents to the gypsum slurry to create air pockets without affecting strength. The 5/8-inch version weighs 51.2 pounds versus standard 5/8-inch at 70.4 pounds – a 19-pound reduction that makes a big difference.
Installation and Structural Considerations
Selecting the right fasteners and installing them correctly impacts drywall’s performance significantly. Your walls’ longevity depends on matching screw length to drywall thickness and proper installation techniques. Building codes provide specific thickness requirements for different applications, which determine if your walls will remain stable or develop issues after completion.
Drywall screw length by panel thickness
Proper installation requires screw length to match drywall thickness perfectly. Panels that are 1/4-inch and 3/8-inch thick need 1-inch or 1-1/4-inch screws to attach to framing. Wood studs paired with standard 1/2-inch drywall call for 1-1/4-inch or 1-5/8-inch screws. Thicker 5/8-inch panels require 1-5/8-inch or 2-inch screws to maintain their structural integrity. Wood studs need screw penetration of at least 1/2 inch to provide adequate holding power. This depth ensures panels stay secure over time.
Sag resistance in ceilings with ⅝-inch panels
Thicker five-eighths-inch panels offer superior sag resistance between joists compared to thinner options. These panels work exceptionally well on ceilings where joists are 24 inches apart. Standard 1/2-inch panels might sag under their weight when spans go beyond 16 inches on center. Specialized 1/2-inch sag-resistant panels match 5/8-inch panels’ performance without the extra weight. These lightweight alternatives reduce weight by about 700 pounds per thousand square feet compared to 5/8-inch drywall. Panel thickness and orientation both affect sag performance.
Building code requirements for drywall wall thickness
Wall location and function determine building code thickness requirements. Residential walls typically use 1/2-inch panels with studs placed 16 inches apart. Ceilings featuring joists at 24 inches need 5/8-inch panels or special sag-resistant 1/2-inch panels. Code requirements mandate 5/8-inch Type X fire-rated drywall for garages and furnace room walls. Proper screw spacing plays a crucial role – codes usually specify fasteners every 12 inches along wall studs and 8 inches for ceilings. These specifications help prevent panel movement that could cause nail pops and cracks.
Conclusion
Choosing the right drywall thickness plays a crucial role in building durable walls that last. Your walls need proper thickness to withstand daily wear and tear, while poor choices can result in cracking and sagging over time. The 5/8-inch panels offer extra strength that works great for ceilings and tall walls, and they help control sound between rooms better. The Smart Fix Handyman can help you select the ideal thickness for your project.
The panel’s location and purpose determine which thickness you should use. Most standard walls do fine with 1/2-inch panels when studs are 16 inches apart. Ceilings usually need 5/8-inch material to stay straight and strong. Specialized panels like moisture-resistant and fire-rated options come with specific thicknesses that match their purpose. Safety codes dictate the required thickness, especially around garages and furnace rooms.
Walls last longer without problems when you understand and use the right drywall thickness. Each panel option’s weight can make installation easier or more challenging. Using the correct screw length for each thickness type and proper installation methods prevents future headaches. Smart thickness choices now help you avoid costly repairs later.
FAQs
Q1. What is the standard thickness for drywall in residential walls? The most common thickness for residential interior walls is 1/2 inch. This standard thickness balances strength and weight, making it suitable for walls with studs spaced 16 inches apart, which is typical in residential framing.
Q2. Why is 5/8-inch drywall recommended for ceilings? 5/8-inch drywall is recommended for ceilings because it provides better resistance to sagging, especially when joists are spaced 24 inches apart or when there’s added weight from insulation or texturing. It also offers improved soundproofing and fire resistance.
Q3. What type of drywall should be used in moisture-prone areas? For areas with high humidity like bathrooms, kitchens, and laundry rooms, moisture-resistant drywall (often called “green board”) is recommended. It features a water-repellent paper covering and a moisture-resistant gypsum core to prevent water damage.
Q4. How does drywall thickness affect sound insulation? Thicker drywall generally provides better sound insulation. 5/8-inch drywall offers improved soundproofing compared to 1/2-inch panels. For maximum sound control, specialized soundproof drywall with multiple layers and sound-dampening materials can be used.
Q5. What is the purpose of fire-rated drywall? Fire-rated drywall, such as Type X and Type C, is designed to slow the spread of fire. It contains glass fibers and other materials that enhance fire resistance. This type of drywall is often required by building codes for areas needing extra fire protection, like walls between living spaces and attached garages.
